Yamamoto YR-01 headshell cable

The Yamamoto YR-01 headshell cables are made of silver-plated copper. In combination with the large cross-section of 0.38 square millimeters, these cables are designed to optimally transmit the full electrical energy of the pickup.
To reduce external influences, the cables are insulated with Teflon.

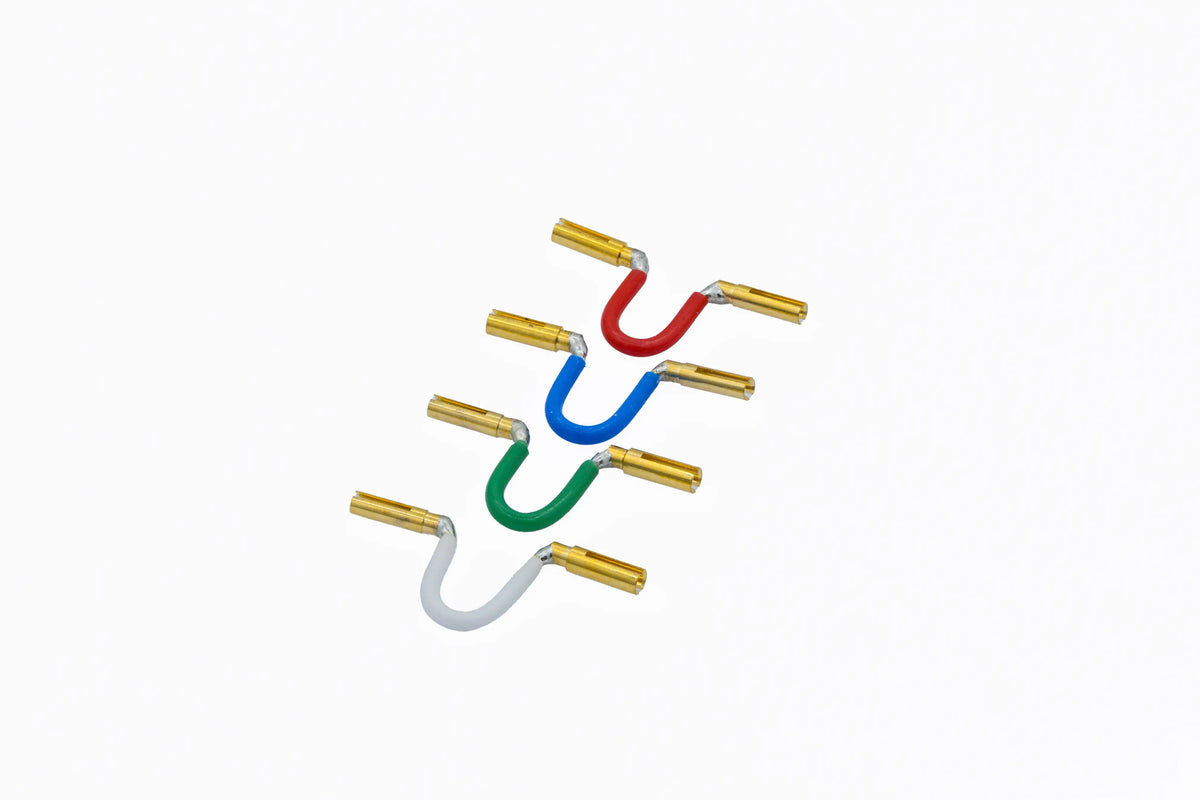

The cables are also soldered to gold-plated brass terminals to ensure optimal conductivity. To ensure the best possible fit of the cables, terminals of different sizes are mounted on both sides. The cables are pre-bent in a U-shape to ensure easy and safe installation. Also to constantly apply light pressure to the terminals to ensure an optimal fit.

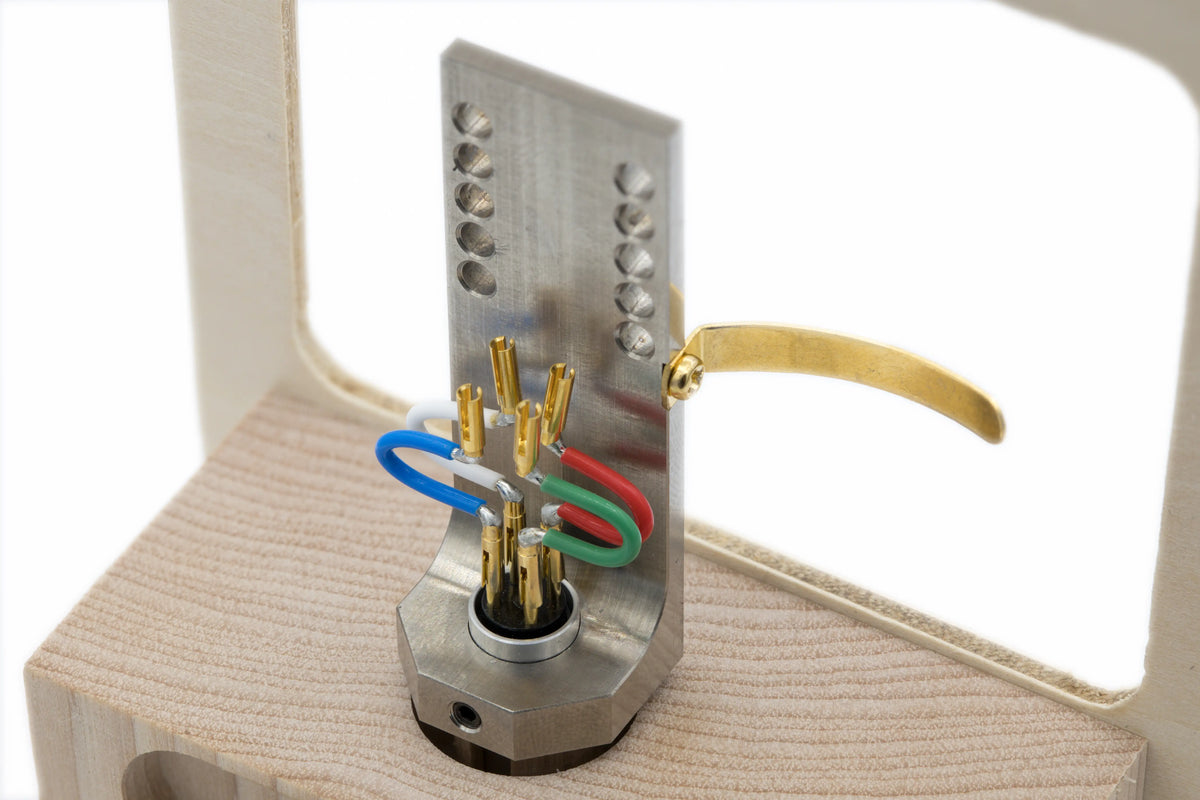

Note: Please note the different connection diameters of the headshell cables. Use the narrower cable lugs of the headshell cables (D: 1mm) for mounting on the headshell and the wider cable lugs (D: 1.2mm) for mounting on the pickup.

Technical data YR-01:
Material: silver-plated copper with Teflon insulation and gold-plated brass terminals
Length: approx. 1.5cm
Cross section: approx. 0.38 square millimeters
